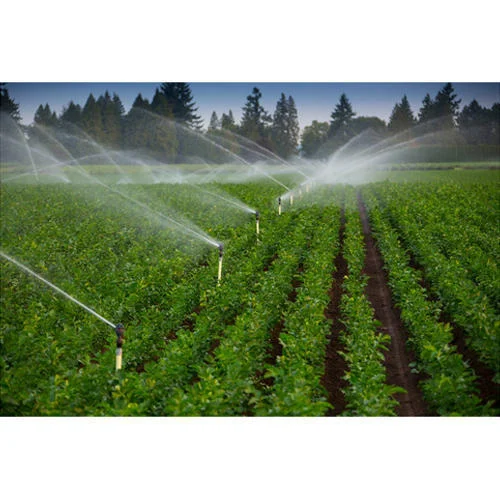

Sprinkler irrigation method distributes water to crops by spraying it over the crop area like natural rainfall.Sprinkler system, water is forced under pressure through the nozzle of a small diameter to apply in spray form.Sprinkler System pressure is usually obtained by the pump.Selection of nozzle sizes, operating pressure, and spacing, the actual water required to depend upon As per water requirement of a crop,

Types of Sprinkler Irrigation System

On the basis of system portability:

• Shiftable/portable sprinkler system
• Semi-permanent/ Mini Sprinkler System
• Permanent sprinkler system.

On the basis of the Radius of throw

 Small Range- Mini Sprinkler system  - up to 12 x 12 m

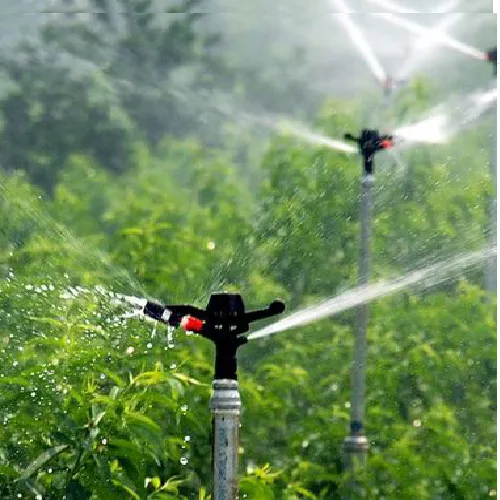

• Mid Range - Overhead Impact Sprinkler - up to 18 x 18 m
• High Range - Rain-gun - up to 70 m radius

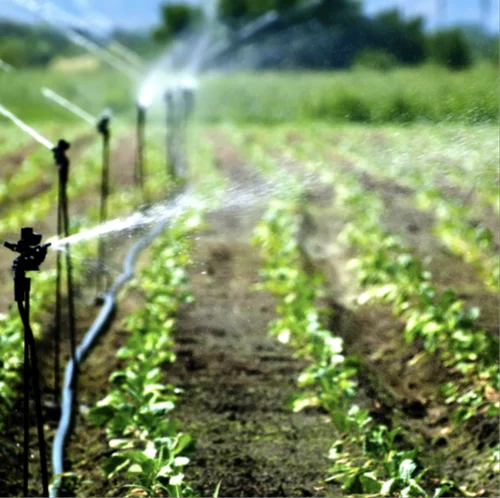

   Shiftable / Portable Sprinkler System - An Overhead Sprinkler System

• Types Sprinkler

○     According to Size - 63mm, 75mm and upto160mm

○     Pressure - 2.5/3.2 and 4 kg/cm²

• One Ha Set includes QRC pipe 75mm X2.5 Kg/Cm2 -30 Nos and 5 Nozzles
• Available in 1ha /2ha/3ha and 4ha sets
